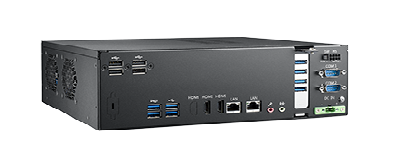

AGS-3091 Intel H110 Skylake-S (EOL)
- Socket LGA1151 for Intel® Core i7 / i5 / i3 (Skylake-S)
- Intel® Gen9 Intel® Graphics DX 11/12, OGL4.3/4.4
- Supports Dual Channel DDR4 2133MHz, 2 x SO-DIMM, up to 32GB system memory
- 2 x HDMI, 4 xUSB 3.0, 4 x USB 2.0, 2 x SATA3, 2 x COM
- 1 x Mini-PCIe, 1 x PCIe x4 Slot(for one low profile add-on card) ,1 x mSATA
- Gigabit LAN : 2 x Intel® Lan
- 12V / 19~24V DC-in
- Certification: CE/FCC Class B
- " Last Buy "

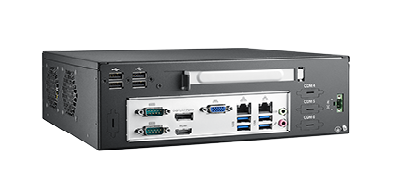

AGS-3295 Intel H110 (Skylake-S) "EOL"
- Socket LGA1151 for Intel® Core i7 / i5 / i3 / Celeron® (Skylake-S)
- Intel® Gen9 Intel® Graphics DX 11/12, OGL4.3/4.4
- Supports Dual Channel DDR4 2133MHz, 2 x SO-DIMM, up to 32GB system memory
- 1 x VGA/HDMI/DP, 4 xUSB 3.0, 4 x USB 2.0, 2 x SATA3, 2 x COM
- 1 x Mini-PCIe, 1 x PCIe x16 Slot(for one PCIex16 half-size add-on card) ,1 x mSATA
- Gigabit LAN : 2 x Intel® Lan
- 12V ~24V DC-in
- Certification: CE/FCC Class B
AES-1040 Amston Lake X7433RE WT
Wide Temperature (WT) Fanless PC, OP enviroment by -20°C ~ +70°C
Amston Lake x7433RE is WT CPU, operating temperature
Options Innodisk DDR4 8GB DRAM, M.2 128GB SSD ( WT -40°C ~ +85°C)
DP/HDMI, 2LAN, 3USB 3.1, 5 USB 2.0, 2COM, DC-IN +9V ~ +36V
AES-1040M-M0H00P0: Intel x7433RE QC 3.4GHz, w/o DRAM/SSD
AES-1263 Alder Lake N97 WM/Din Rail
With Alder Lake N97 CPU
HDMI/DP, 2 x Gb LAN, 3USB3.2, 3USB 2.0, 2COM, DC-IN +9V~36V
Support DDR5 4800MHz SO-DIMM, up to 16GB
Offer DIN Rail and Wall Mount both features by options
(Coexist design of Wall Mount and DIN RAIL solutions )
AES-1263-M0M00P0: N97, 2LAN ( 2 x GbE Intel I210AT)
w/o DRAM, w/o M.2 SSD
Certification CE/FCC Class B
AES-1061 Alder Lake N97 WM/Din Rail
With Alder Lake N97 CPU
2HDMI, 2 x 2.5Gb LAN, 2USB3.2, 6USB 2.0, 2COM, DC-IN +9V~36V
Support DDR5 4800MHz SO-DIMM, up to 16GB
Offer DIN Rail and Wall Mount both features by options
(Coexist design of Wall Mount and DIN RAIL solutions )
AES-1061-M0M00P0: N97, 2LAN ( 2 x GbE Intel I210AT)
w/o DRAM, w/o M.2 SSD
Certification CE/FCC: Class A
